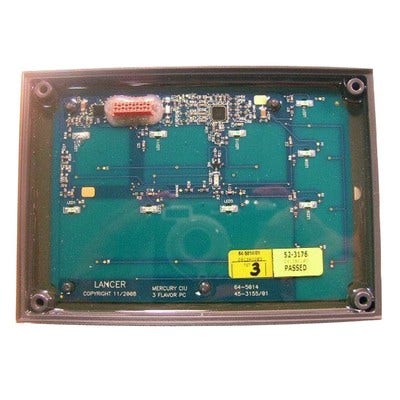

Lancer Panel Assembly MVU Logic Control Board - 52-3176-SP
The Lancer Panel Assembly Printed Circuit Board MVU is the primary logic controller for the Multi-Valve Unit. It manages the communication between the user interface and the dispensing solenoids, handling the precise timing required for small, medium, and large portion-controlled pours.
Symptoms of Failure: If the dispenser is 'forgetting' portion sizes, failing to register button presses, or if the display shows garbled characters, the logic board is likely corrupted. A total lack of power to the valves (while the compressor still runs) is also a strong indicator of a blown output relay on this PCB.
- Part Type: Main Logic Control PCB
- Application: MVU Series Dispensers
- Voltage: 24V Input
- Functions: Portion Control, Agitator Timing, Logic Reporting
Lancer Panel Assembly MVU Logic Control Board - 52-3176-SP
The Lancer Panel Assembly Printed Circuit Board MVU is the primary logic controller for the Multi-Valve Unit. It manages the communication between the user interface and the dispensing solenoids, handling the precise timing required for small, medium, and large portion-controlled pours.
Symptoms of Failure: If the dispenser is 'forgetting' portion sizes, failing to register button presses, or if the display shows garbled characters, the logic board is likely corrupted. A total lack of power to the valves (while the compressor still runs) is also a strong indicator of a blown output relay on this PCB.
- Part Type: Main Logic Control PCB
- Application: MVU Series Dispensers
- Voltage: 24V Input
- Functions: Portion Control, Agitator Timing, Logic Reporting
