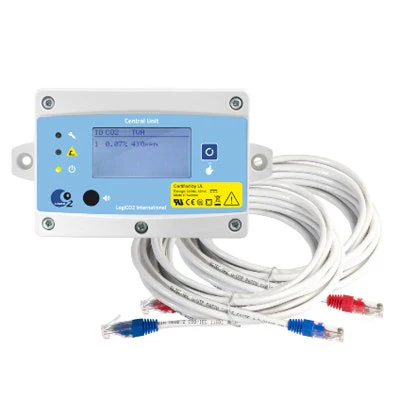

LogiCO2 Mk9 Central Unit Add-On Kit, Central Unit Kit: 2117/2119/2125

The Mk9 CO₂ Central Unit represents a new thinking in CO₂ Monitoring. Made so that all sensors that we make for fixed installation can be connected. The older MkVII sensors can also be connected. A larger display, functional design and new language functionalities are some of the new features of the Mk9 Central Unit. Up to twelve sensors can be connected to the Mk9 Central Unit, providing a sophisticated and powerful System.

LogiCO2 Central Unit Mk9 CO2 kit 4a displays the values of alerts and error messages from one to eight Mk9 or mk10 CO2 sensors, in multiple languages. The kit includes 33 ft power communication cable, connectors, manual and 2 warning signs.

The default alarm levels are
– 5.000 ppm Awareness Alert
– 5000 ppm TWA 8Hr (PEL)
– 1,5% (15.000 ppm) ½ STEL
– 3,0% (30.000 ppm) STEL

Technical Data: Central Unit MK9

Specification	Details
Power Supply	12-24V DC
Consumption	40 mA
Communication	RS485, Modbus
Display	128x64 dot-matrix LCD
Acoustic Signal-Strength	70 dB (1m) max.
Ambient Temperatures	0-40°C (+32°F to +102°F)
Humidity	0-90% non-condensing
Ingress Protection	IP44
Approvals & Standards	CE: Emission (SS-EN 61000-6-3) & Immunity (SS-EN 61000-6-2) Manufactured in accordance with DIN 6653-2 Tested by German TÜV-Rheinland Certified by UL
Dimensions (LxWxD)	90 x 161 x 38 mm / 3.5" x 6.3" x 1.5"

What's included the kit?
